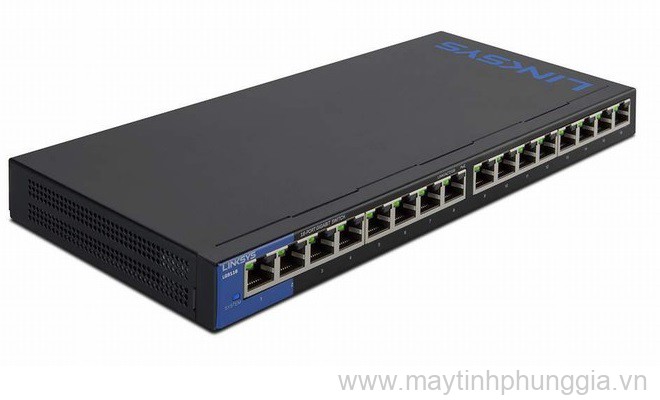

Sửa 16-Port Business Desktop Gigabit Switch LINKSYS LGS116

Chi tiết sản phẩm

Thông số sản phẩm

Sửa 16-Port Business Desktop Gigabit Switch LINKSYS LGS116 tại Phùng Gia

- Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speeds.

- 16 Port 10/100/1000 Mbps with MDI and MDI crossover (MDI-X); auto negotiated port.

- Bandwidth: 32 Gbps (non-blocking).

- Performance: Full line rate and forwarding rate of 64B frame at: 1.488Mpps for 1000M port; 0.1488Mpps for 100M port; 0.01488Mpps for 10M port.

- Wired connection speed up to 1000 Mbps

- 16 Gigabit Ethernet auto-sensing ports

- Easy plug & play connection

- QoS

- Meets EEE (Energy Efficient Ethernet) 802.3az standard

GIGABIT PERFORMANCE

Minimize transfer times and stream high-bandwidth files to connected devices without interference.

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device.

POWER-SAVING FEATURES

The auto power-down feature disables unused ports, smart power is ideal for short cable runs, and the port status switch controls LED lights.

Technical specifications

- Network Standards:

o IEEE 802.3

o IEEE 802.3u

o IEEE 802.3x

o IEEE 802.3ab

o IEEE 802.3az

- Ports:
16 Gigabit Ethernet (10/100/1000) Ports

- LEDs:
Link, speed, and activity indicators

- Performance:

o Full line rate and forwarding rate of 64B frame at:

o 1.488Mpps for 1000M port

o 0.1488Mpps for 100M port

o 0.01488Mpps for 10M port

- MAC Address Table Size:
8K

- Bandwidth:
32 Gbps (non-blocking)

- Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables

- Dimensions (LxWxH):
280 x 120 x 25 mm (109.2 x 46.8 x 9.75 in.)

- Weight:
0.774 kg (1.71 lbs)

- Power:
12 VDC, 1 A

- Power Consumption:
2.66 W / 9.32 W

- Power Saving:
Cable connected detection, sleep mode

- Power Supply:
External

- Operating Temperature:
0–50°C (32–122°F)

- Storage Temperature:
-20–70°C (-4–158°F)

- Operating Humidity:
10–90% (non-condensing)

- Storage Humidity:
10–90% (non-condensing)

- Quality Of Service:
802.1p and DSCP

- Regulatory Compliance:
FCC Class A, CE
