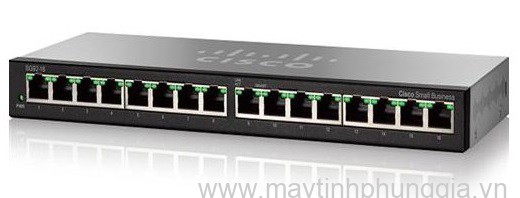

Sửa 16-port Gigabit Ethernet Switch Cisco SG95-16

Ports

SG95-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet

Cabling type

Category 5e or better

LED indicators

System/PWR, link/activity, 100M*, cable diagnostics, loop detection, gigabit,* mini-GBIC* *if present

Power supply

SG95-16: 110-240VAC, 50-60 Hz, internal, universal

Physical dimensions (W x D x H)

SG95-16: 279.4 x 26 x 110 mm

Weight

SG95-16: 3.15 lb. (2.13 kg)

Switching capacity

SG95-16: 32 Gbps

Forwarding capacity

Forwarding rate in million packets per second (mpps) (based on 64-byte packets): SG95-16: 23.8 mpps

Compliance/certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
