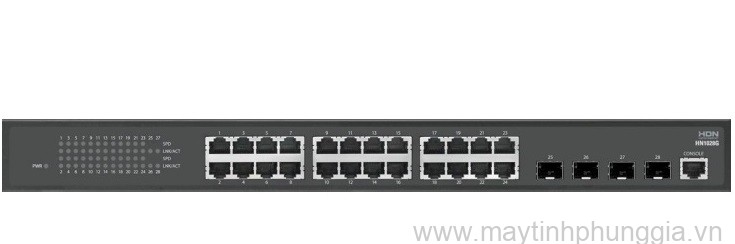

Sửa 24-port 10-100-1000BaseTX Security Switch HANDREAMNET tại Phùng Gia

Performance

- Switching Capacity: 56Gbps

- Throughput: 41.67Mpps

- MAC Capacity: 8K

Hardware

- Flash Memory: 64MB

- DRAM: 128MB

Interface

- 24-Port 10/100/1000Base-T

- 4-Port 1000Base-SX/LX (SFP)

- 1-Port Console (With RJ-45)

Power

- Input: AC 100~240VAC, 50/60Hz

- Power Consumption: 17W

VLAN

- 4K VLAN IDs

- 802.1Q Port-based/Tag-based VLAN

Resiliency

- VLAN Stacking (Q in Q / Double Tagging)

- IEEE 802.1D STP

- IEEE 802.1w RSTP

- IEEE 802.1s MSTP

Flow Control

- IEEE 802.3x for full duplex mode

- Back pressure flow control half duplex mode

- Jumbo Frame: 10K

QoS

- 8 CoS Queue per Port

- Scheduling : SPQ, RR, WRR, WFQ

- Diffserv

- Rate Limit (Ingress/Egress)

- Flow Metering / Policing / Marking / Remarking Multicast

- IGMP Snooping v1, v2, v3

Aggregation

- IEEE 802.3ad with LACP  - 8 aggregation groups up to 8 ports

Management

- Dot1x - IEEE 802.1x - Port-Based, Guest-VLAN, RADIUS server

- MAC Address/DHCP/NetBIOS filtering

- User Authentication

- ACL (L2/L3/L4)

- Cable Loop Detection

- ARP Attack, ARP Spoofing(Dynamic & Static), DoS Prevention, Port Security

- Storm Control (Broadcast storm, Multicast storm, DLF(Destination Lookup Failure))

- IPv6 Support

- SNMP v1/v2c/v3(MIB-II,MIB IPv6)

- AAA  - RADIUS, TACACS+

- Telnet, SSH

- LLDP, LLDP MED

- Managed by VNM / VIPM

- OS Update via FTP, TFTP

- Dual OS

- Port mirroring

- RMON (group 1, 2, 3, 9)

- NTP/SNTP

- Traceroute

- Ping

- Banner

- Remote Syslog

- Configuration file upload/download (FTP, TFTP)

Others

- Operating Temperature: 0~40°C

- Operating Humidity: 0~85% (Non-Condensing)

- Storage Temperature: -20~70°C

- Fan less

- Dimension: 440(W) x 44(H) x 240(D)mm

- Weight: 2.8kg
