Sửa bộ chia mạng Switch Cisco Catalyst 2960 WS-C2960S-24TD-L

Mã SP: | Lượt xem: 248 lượt

Sửa bộ chia mạng Switch Cisco Catalyst 2960 WS-C2960S-24TD-L tại Phùng Gia

Kho hàng: Còn hàng

Bảo hành:

Giao hàng: Phí giao hàng và cài đặt : 30.000 VNĐ (Trong phạm vi 8km).

Khuyến mại:

Giá: Liên hệ

Số lượng

Đặt mua ngayNhanh chóng, thuận tiện

Bạn cần mua bán sửa chữa bảo hành hãy gọi ngay vào Hotline để được tư vấn trực tiếp về sản phẩm

Ms. Thu Hoa

0949.51.3333

Mr. Thái

0975.39.3333

Mr. Vinh

0942.17.3333

Chi tiết sản phẩm

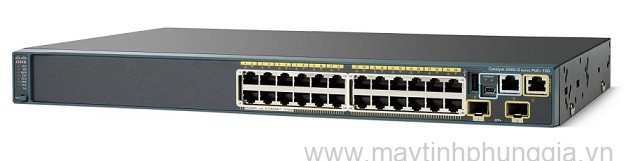

Sửa bộ chia mạng Switch Cisco Catalyst 2960 WS-C2960S-24TD-L

Thông số sản phẩm

Sửa bộ chia mạng Switch Cisco Catalyst 2960 WS-C2960S-24TD-L uy tín tại Phùng Gia

WS-C2960S-24TD-L Specifications
General Information
Device Type	Switch - 24 ports - Managed
Enclosure Type	Rack-mountable - 1U
Ports	24 x 10/100/1000 + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	Yes
Performance	Switching capacity: 176 Gbps
Performance	Forwarding performance (64-byte packet size) : 65.5 Mpps
MAC Address Table Size	8K entries
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	Layer 2 switching, auto-sensing per device, dynamic IP address assignment , auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
RAM	128 MB
Flash Memory	64 MB Flash
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Expansion / Connectivity
Interfaces	24 x 10Base-T/100Base-TX/1000Base-T - RJ-45
	USB: 1 x 4 PIN USB Type A
	1 x console - mini-USB Type B - management
	1 x console - RJ-45 - management
	1 x 10Base-T/100Base-TX - RJ-45 - management
	2 x SFP+
Expansion Slot(s)	1 (total) / 1 (free) x Stacking Module
Power
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	39 Watt
Rack Mounting Kit	Optional
MTBF	332,958 hour(s)
Compliant Standards	TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A
Software / System Requirements
Software Included	Cisco IOS LAN Base
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - replacement - lifetime - response time: next business day
	Limited warranty - power supply and fans - 5 years
	New releases update
Environmental Parameters
Min Operating Temperature	23 °F (-5 °C)
Max Operating Temperature	104 °F (40 °C)
Humidity Range Operating	10 - 95% (non-condensing)
Min Storage Temperature	-13 °F (-25 °C)
Max Storage Temperature	158 °F (70 °C)
Humidity Range Storage	10 - 95% (non-condensing)
Dimensions	17.5 in. (44.5 cm) x 11.8 in. (29.9 cm) x 1.8 in. (4.5 cm)
Weight	9.5 lbs (4.3 kg)
