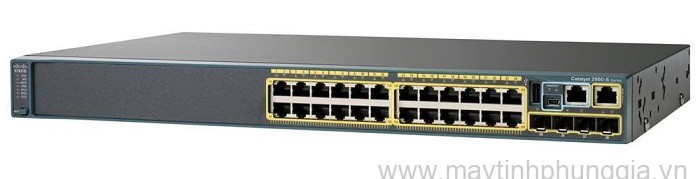

Sửa bộ chia mạng Switch CISCO Catalyst 2960 WS-C2960X-24TS-LL

Model info

WS - 2960X - 24TS - LL

Enclosure type

Rack - mountable - 1U

Ports

24 x 10/100/1000 + 2 x 1G SFP

Network management Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

None

Forwarding bandwidth (Gbps)

50 Gbps

Maximum stacking number

None

Stack Bandwidth

None

Forwarding Performance

68.5Mpps

Switching bandwidth

100Gbps

Maximum active VLANs

64

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

256 MB

Flash Memory

64 MB

Status Indicators

Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

None

Power Redundancy

Option (PWR-RPS2300)

Compliant Standards

IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab (LLDP), IEEE 802.3ad, IEEE 802.3af and IEEE 802.3at, IEEE 802.3ah (100BASE-X single/multimode fiber only), IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

Voltage range (Auto)

110 - 240VAC

Power Consumption Operational

0.035KVA

Dimensions (W x D x H)

44.5 x 27.9 x 4.5 cm

Weight

3.7 kg
