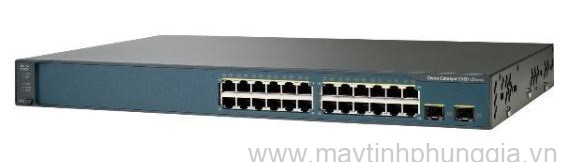

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560V2-24PS-E

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3560V2-24PS-E

Product Type

Switch - 24 ports - L3 - Managed

Form Factor

Rack mountable - 1U

Switch Ports

24 x 10/100 + 2 x SFP

Power Over Ethernet (PoE)

Yes

MAC Address Table Size

12K entries

Routing Protocol

OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, static IP routing, PIM-DM, policy-based routing (PBR)

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2

Authentication Method

Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Flow control, Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, event log, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Flash Memory

32 MB Flash

LED Status Lights Indicators

Port status, link activity, port transmission speed, port duplex mode, status

Connectivity Slots

Interfaces

24 x 10Base-T/100Base-TX - RJ-45 - PoE

1 x console - RJ-45 - management

2 x SFP (mini-GBIC)

MTBF

275,360 hour(s)

Compliant Standards

CE, FCC Class A certified, CISPR 22 Class A, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CSA 22.2 No. 60950, EMC, FCC Part 15, UL 60950-1, IEC 60950-1

Voltage Required

AC 120/230 V ( 50/60 Hz )

Power Consumption Operational

435 Watt

Features

Redundant Power System (RPS) connector

Width

44.3 x 29.5 x 4.4 cm

Weight

4.6 kg
