Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560V2-24TS-S

Mã SP: | Lượt xem: 262 lượt

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560V2-24TS-S tại Phùng Gia

Kho hàng: Còn hàng

Bảo hành:

Giao hàng: Phí giao hàng và cài đặt : 30.000 VNĐ (Trong phạm vi 8km).

Khuyến mại:

Giá: Liên hệ

Số lượng

Đặt mua ngayNhanh chóng, thuận tiện

Bạn cần mua bán sửa chữa bảo hành hãy gọi ngay vào Hotline để được tư vấn trực tiếp về sản phẩm

Ms. Thu Hoa

0949.51.3333

Mr. Thái

0975.39.3333

Mr. Vinh

0942.17.3333

Chi tiết sản phẩm

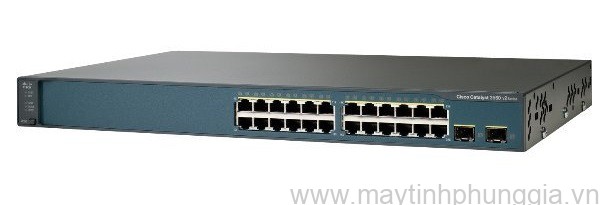

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560V2-24TS-S

Thông số sản phẩm

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560V2-24TS-S uy tín tại Phùng Gia

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	WS-C3560V2-24TS-S
Product Type	Switch - 24 ports - L3 - Managed
Form Factor	Rack mountable - 1U
Switch Ports	24 x 10/100 + 2 x SFP
Performance	Switching capacity: 32 Gbps
Capacity	Switched virtual interfaces (SVIs): up to 1000
Capacity	Virtual interfaces (VLANs): 1000
MAC Address Table Size	12K entries
Jumbo Frame Support	9016
Routing Protocol	RIP-1, RIP-2, HSRP, static IP routing
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm	SSL
Authentication Method	Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Flash Memory	32 MB Flash
LED Status Lights Indicators	Link activity, port duplex mode, bandwidth utilization %, power, link OK, system
Connectivity Slots
Interfaces	24 x 10Base-T/100Base-TX - RJ-45 1 x console - RJ-45 - management 2 x Ethernet 1000 - SFP (mini-GBIC)
Power Supply
Power Device	Power supply - internal
Features	Redundant Power System (RPS) connector
Compliant Standards	CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A
System Software
MTBF	377,260 hour (s)
Voltage Required	120/230 VAC (50/60 Hz )
Dimensions	44.3 x 29.5 x 4.4 cm
Weight	3.7 kg
