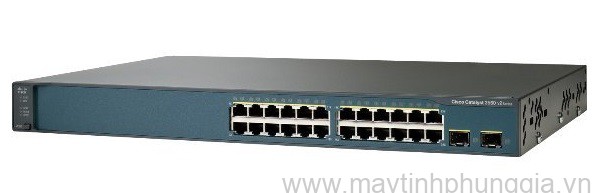

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560V2-24TS-SD

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3560V2-24TS-SD

Product Type

Switch - 24 ports - L3 - Managed

Form Factor

Rack mountable - 1U

Switch Ports

24 x 10/100 + 2 x SFP

MAC Address Table Size

12K entries

Routing Protocol

RIP-1, RIP-2, static IP routing

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c

Authentication Method

Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Flash Memory

32 MB Flash

Connectivity Slots

Interfaces

24 x 10Base-T/100Base-TX - RJ-45

1 x console - RJ-45 - management

2 x SFP (mini-GBIC)

Power Supply

Power Device

Power supply - internal

Compliant Standards

CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A

Voltage Required

 36 -72 VDC

Power Consumption Operational

60 Watt

Features

Redundant Power System (RPS) connector

MTBF

451,606 hour(s)

Dimensions

44.3 x 29.5 x 4.4 cm

Weight

3.7 kg
