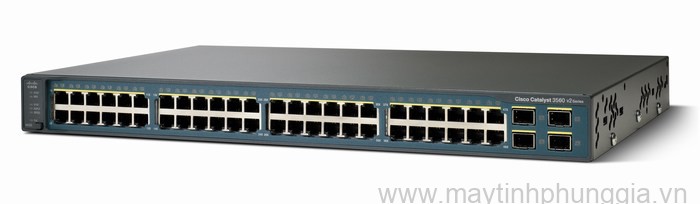

Sửa bộ chia mạng Switch CISCO Catalyst 3560 WS-C3560V2-48TS-E

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3560V2-48TS-E

Product Type

Switch - 48 ports - L3 - Managed

Form Factor

Rack mountable - 1U

Switch Ports

48 x 10/100 + 4 x SFP

MAC Address Table Size

12K entries

Routing Protocol

OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, DVMRP, PIM-SM, static IP routing, PIM-DM

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c

Authentication Method

Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Flash Memory

32 MB Flash

Connectivity Slots

Interfaces

48 x 10Base-T/100Base-TX - RJ-45

1 x console - RJ-45 - management

4 x SFP (mini-GBIC)

Power Supply

Power Device

Power supply - internal

MTBF

301,886 hour(s)

Compliant Standards

CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A

Voltage Required

AC 120/230 V ( 50/60 Hz )

Features

Redundant Power System (RPS) connector

Dimensions

44.3 x 29.5 x 4.4 cm

Weight

4 kg
