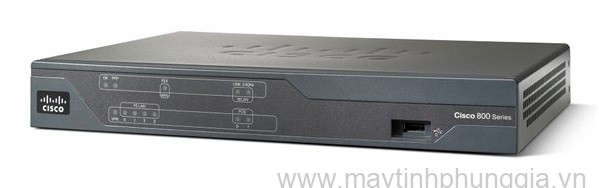

Sửa G.SHDSL Security Router CISCO888-SEC-K9

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

CISCO888 - SEC - K9

Product Type

router - 4 - port switch (integrated)

Form Factor

Desktop

Connectivity Technology

Wired

Data Link Protocol

Ethernet, fast ethernet

Capacity

IPSec VPN tunnels: 20

Network / Transport Protocol

L2TP, IPSec, PPPoE, PPPoA

Routing Protocol

OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE

Remote Management Protocol

Telnet, SNMP 3, HTTP, HTTPS

Encryption Algorithm

DES, Triple DES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES

Authentication Method

RADIUS, TACACS+

Features

NAT support, interrupt status port (ISP), VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, stateful Packet Inspection (SPI), content filtering, MAC address filtering, IPv6 support, stateful failover, class-Based weighted fair queuing (CBWFQ), weighted fair queuing (WFQ), access control list (ACL) support, quality of service (QoS), Dynamic multipoint VPN (DMVPN), DHCP server, virtual route forwarding-lite (VRF-Lite), DNS proxy

Compliant Standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x

DRAM Memory

256 MB (installed) / 768 MB (max) - DDR2 SDRAM - SO DIMM 200-pin

Flash Memory

128 MB

LED Status Lights Indicators

Port status, power

Communications

Type

DSL modem

Protocols & Specifications

ITU G.991.2 (G.shdsl)

Connectivity Slots

Router Interfaces

LAN: 4 x 10Base-T/100Base-TX - RJ-45

Management: 1 x console - RJ-45

WAN: 1 x SHDSL

USB: 1 x 4 PIN USB Type A

WAN: 1 x BRI ST - RJ-45

Expansion Slots Total (Free)

1 x ExpressCard

1 x memory - SO DIMM 200-pin

Power Supply

Voltage Required

120/ 230 VAC ( 50/60 Hz )

Dimensions

32.5 x 24.9 x 4.4cm
