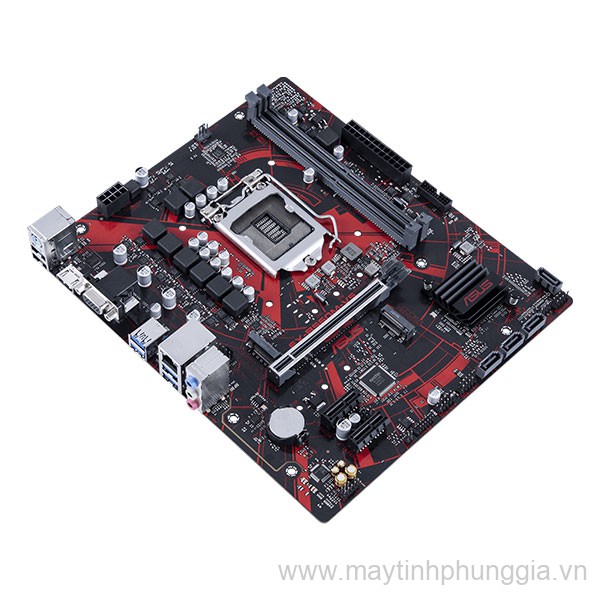

Sửa Mainboard ASUS EX-B560M-V5

Tên Hãng

ASUS

Model

EX-B560M-V5

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/
2400/2133 MHz Non-ECC, Un-buffered memory

Khe cắm mở rộng

Intel^® 11^th &10^th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel^® 11^th Gen processors support PCIe 4.0 x16

- Intel^® 10^th Gen processors support PCIe 3.0 x16

Intel^® B560 Chipset

2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel^®11^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel^® 11^th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel^® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Speaker header

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMI^TM port

3 x Audio jacks

1 x Realtek 1Gb Ethernet port

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Realtek 1Gb Ethernet
ASUS LANGuard

Kích cỡ

microATX
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
