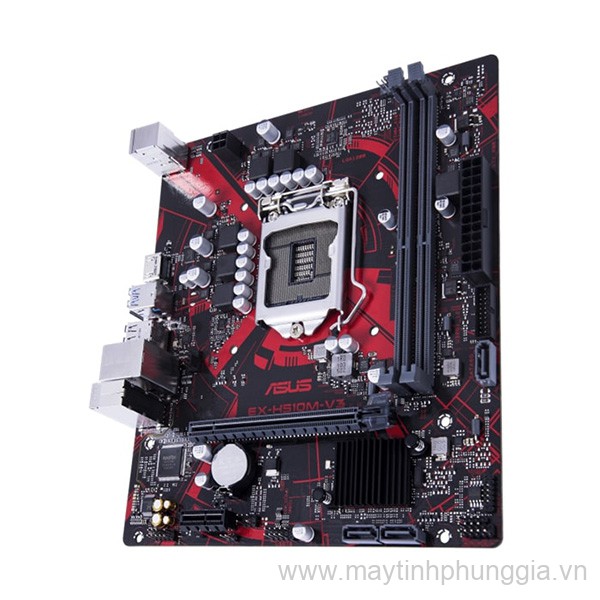

Sửa Mainboard Asus EX-H510M-V3

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

EX-H510M-V3

CPU hỗ trợ

Intel

Chipset

H510

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC

Khe cắm mở rộng

Intel® 11^th & 10^th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel® 11^th Gen processors support PCIe 4.0 x16 mode

- Intel® 10^th Gen processors support PCIe 3.0 x16 mode

Intel® H510 Chipset

1 x PCIe 3.0 x1 slot

Ổ cứng hỗ trợ

Total supports 3 x SATA 6Gb/s ports

Intel® H510 Chipset

3 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 4-pin +12V Power connector

Storage related

3 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x HDMI™ port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port

LAN / Wireless

1 x Realtek 1Gb Ethernet

Kích cỡ

microATX
18.8cm*21.3cm
