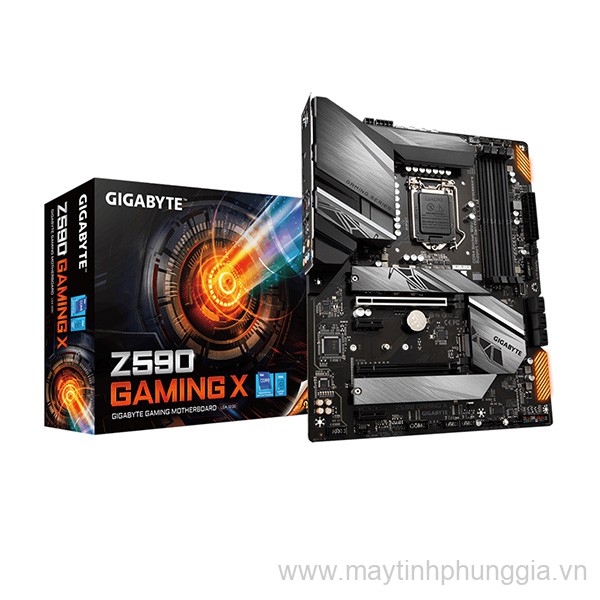

Sửa Mainboard Gigabyte Z590 GAMING X

Model

Z590 GAMING X

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector
Chipset:
2 x M.2 connector
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse port
1 x USB Type-C® header, with USB 3.2 Gen2 support
1 x DisplayPort
1 x USB 3.2 Gen 2 Type-A port (red)
5 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks 2 support)

LAN / Wireless

Realtek® 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)

Kích cỡ

ATX Form Factor
30.5 cm x 24.4cm
